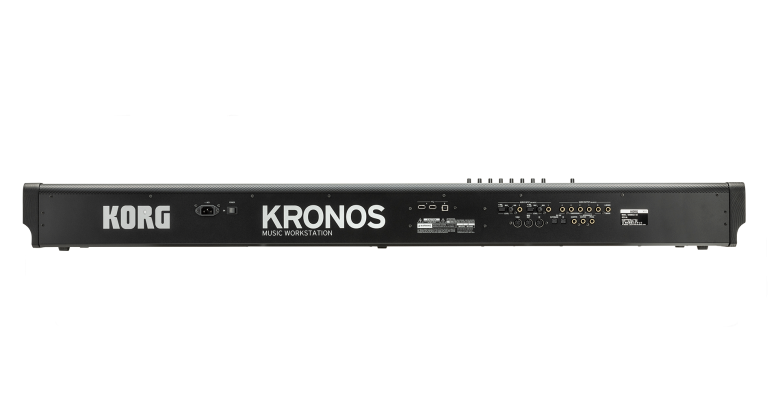

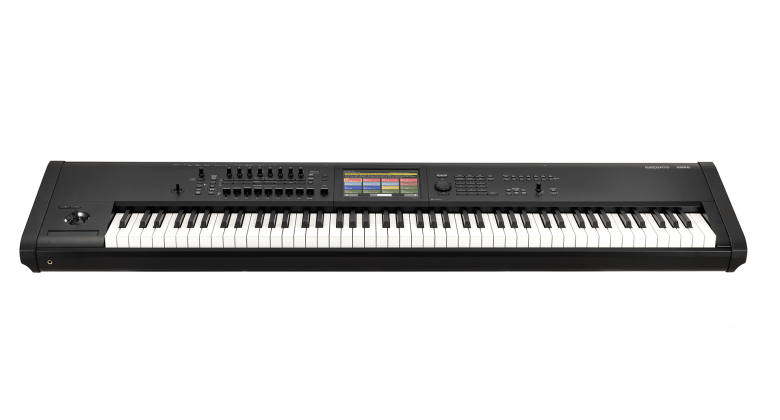

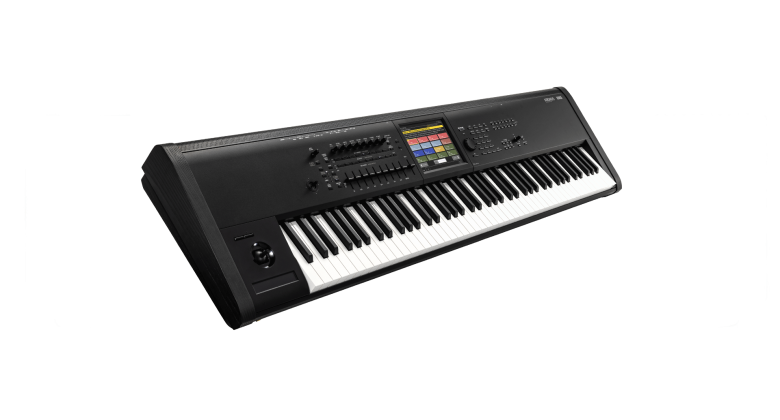

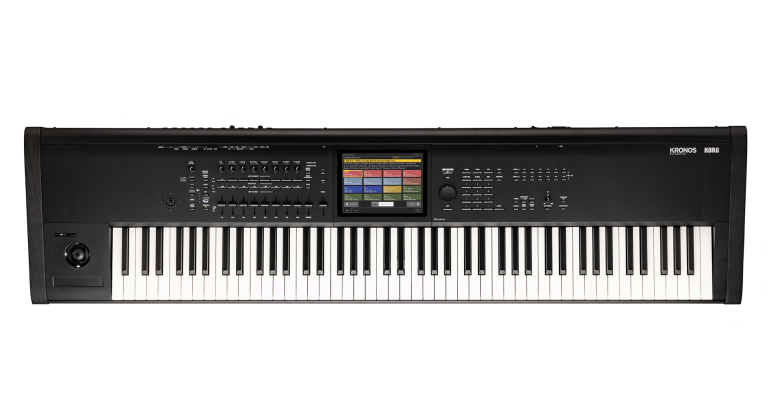

KORG Kronos 3 88

Kronos 3 technické specifikace

Klaviatura

88 key: RH4 (Real Weighted Hammer Action 3)
73 key: RH4 (Real Weighted Hammer Action 3)
61 key: Natural Touch Semi Weighted

Zvukový generátor

Typy syntéz
9
SGX-2: Premium Piano (Acoustic Piano)
EP-1: MDS Electric Piano (Electric Piano)
HD-1: High Definition Synthesizer (PCM)
AL-1: Analog Synthesizer (Analog Modeling)
CX-3: Tonewheel Organ (Tonewheel Organ Modeling)
STR-1: Plucked Strings (Physical Modeling)
MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis)
MS-20EX: Component Modeling Technology (Analog Modeling)
PolysixEX: Component Modeling Technology (CMT Analog Modeling)

Maximální polyfonie
SGX-2: 100 voices (100 dual-stereo notes, equivalent to 400 mono voices)
EP-1: 104 voices
HD-1: 140 voices
AL-1: 80 voices
CX-3: 200 voices
STR-1: 40 voices
MOD-7: 52 voices
MS-20EX: 40 voices
PolysixEX: 180 voices

*1: Polyfonie může být omezena při použití efektů náročných na procesor.
*2: KRONOS dynamicky rozděluje výpočetní výkon mezi hlasy a efekty.
*3: SGX-2 má 100 duálních stereo tónů (což odpovídá 400 monofonním hlasům).

Preset PCM

314 MB (ROM 1,505 Multisamples, 1,388 Drumsamples)

Instalované rozšiřující PCM knihovny

EXs1: ROM Expansion
EXs2: Concert Grand Piano
EXs3: Brass & Woodwinds
EXs4: Vintage Keyboards
EXs5: ROM Expansion 2
EXs6: German D Piano
EXs7: Japanese C Piano
EXs8: Rock Ambience Drums
EXs9: Jazz Ambience Drums
EXs17: SGX-2 Berlin D Piano
EXs18: Korg EXs Collections
EXs22: SGX-2 Italian F Piano LE
EXs23: 2 Church Pianos
EXs206: A2D 10 Selections
EXs207: Bolder 10 Selections
EXs208: K-Sounds 10 Selections
EXs209: KApro 10 Selections
EXs210: KARO 10 Selections
EXs211: Kelfar 10 Selections
EXs212: Kid Nepro 10 Selections
EXs213: PCreek 10 Selections Vol.1
EXs214: PCreek 10 Selections Vol.2
EXs215: Q Up Arts 10 Selections
EXs216: Soundiron 10 Selections
EXs217: SOP 10 Selections
EXs218: Irish Acts 10 Selections

Kapacita PCM RAM

Cca: 3GB

*4: Dostupná paměť pro režim vzorkování se může lišit v závislosti na použití rozšiřujících knihoven PCM a uživatelských vzorkovacích bank. V továrním nastavení je k dispozici přibližně 760 MB (při načtení souboru s názvem „PRELOAD.KSC“).

Wave Sequences

Paměť: 598 uživatelských pamětí, 207 přednastavených pamětí
Podporuje stereofonní multisamply, synchronizaci jednotlivých not a nastavení podle tempa.

SGX-2 Program

Premium Piano
Technologie virtuální paměti (VMT) přehrává velké vzorky přímo z interního SSD
Plné stereo vzorkování kláves, chromatické vzorkování až na 12 úrovní rychlosti, bez smyček.
Resonance tlumičů a mechanické šumy jsou reprodukovány.
Modelovaná rezonance strun.
Podpora samplů Una Corda.

PCM
EXs6: SGX-1 German D Piano
EXs7: SGX-1 Japanese C Piano
EXs12: SGX-1 Austrian D Piano (Option Sound libraries)
8 velocity levels, no Una Corda samples
EXs17: Berlin D Piano, 12 velocity levels, includes Una Corda samples.

Typy pian
80 (S továrními nastaveními 16 variant EXs12 SGX-1 Austrian D Piano nevydávají žádný zvuk. Je nutné stáhnout rozšíření EXs12.)

Ovládání oscilátoru
Rezonance tlumiče, šum tlumiče, mechanický šum, uvolnění tónu, rezonance strun, una corda

EP-1 Program

MDS Electric Piano
Elektrická piana s kladívky a jazýčky založená na technologii Multi-Dimensional Synthesis (MDS) a vintage efekty.

Typy modelů elektrických pian
7 typů: Tine EP I Early, Tine EP I Late, Tine EP II, Tine EP V, Tine EP DMP, Reed EP 200, Reed EP 200A

Ovládání oscilátoru
Harmonic Sound Level, Attack Noise, Level, Release Noise Level, Attack Brightness, Hammer Width

Ovládací panel
Tine Type, Preamp Volume, Tone (Treble, Bass), Vibrate (On/Off, Intensity, Speed), Amp/Cabinet (On/Off, Drive)
Reed Type, Preamp Volume, Tone (Treble, Bass), Vibrate (Intensity, Speed), Amp/Cabinet (On/Off, Drive)

Typy efektů
9 Types: Small Phase, Orange Phase, Black Phase, Vintage Chorus, Black Chorus, EP Chorus, Vintage Flanger, Red Comp, Vox Wah

HD-1 Program

Advanced Vector Synthesis
Řízení hlasitosti oscilátorů a parametrů syntézy a efektů pomocí joysticku Vector a tempem synchronizované obálky Vector Envelope.

Structura
Single: pouze OSC1, Double: OSC1 a OSC2.
Dvojitý režim umožňuje vrstvení dvou zcela samostatných syntezátorových hlasů s vlastním nastavením.

Oscilátory
Technologie virtuální paměti (VMT) přehrává velké vzorky přímo z interního SSD..
8 rychlostních zón na oscilátor, s přepínáním, prolínáním a vrstvením.

Filtry
Dva multimodální filtry na hlas (low-pass, high-pass, band-pass, band-reject), Four-mode filter routings (single, serial, parallel, and 24dB mode).

Driver
Nelineární driver a low boost obvod.

EQ
Tři pásma, s nastavitelným středem.

Modulace
Tři generátory obálek, dva LFO na hlas, společný LFO, čtyři generátory sledování kláves, AMS (Alternate Modulation Source), dva mixéry AMS.

EXi Program Common

Advanced Vector Synthesis
Řízení hlasitosti oscilátorů a parametrů syntézy a efektů pomocí joysticku Vector a tempem synchronizované obálky Vector Envelope.

Modulatce
Společný sekvencer kroků, AMS (alternativní zdroj modulace), společný LFO, 2 generátory sledování kláves

EQ
Tři pásma s nastavitelným středem.

AL-1 Program

Oscilátory
Ultra-low-aliasing oscillators
OSC1, OSC2, Sub-oscillator and noise generator; ring modulation, FM and Sync

Audio Input
External audio can be processed through the ring modulator, filter, driver, amp, and EQ

Filters
Two multi-mode filters (low-pass, high-pass, band-pass and band-reject) with four types of filter routings (single, serial, parallel and 24dB mode),
Multi Filter mode (only Filter-A; modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects)

Driver
Per-voice non-linear driver and low boost circuit

Modulation
Five Envelope generators, four per-voice LFOs, two AMS Mixers; Per-voice Step Sequencer.

CX-3 Program

Tonewheel Organ Modeling
Phase-synchronous tonewheels (clean and vintage modes), percussion, key click, wheel brake

EX Mode
Four additional, user-specified drawbars, and expanded percussion.

Internal Effects
Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ

Drawbar Control
Controlled via nine front-panel sliders (via Tone Adjust)

Split
Upper, Lower (even in EX mode)

Modulation
Two AMS mixers

STR-1 Program

Physically Modelled String
Includes physically modelled damping, decay, dispersion, nonlinearity, harmonics, dual pickups, and more.
Most string parameters can be controlled in realtime.

String Excitation
Three independent excitation sources can be used simultaneously: Pluck, Noise, and PCM.
16 preset “pluck” types, with modulatable width and randomization. Noise generator with saturation and dedicated low pass filter
PCM Oscillator:
Korg’s ultra-low-aliasing technology, as introduced in the HD-1;
4 velocity zones per oscillator;
Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode.
Supports Virtual Memory.

Excitation Filter
Dedicated 2-pole multimode filter for shaping the string excitation.
Filter can be enabled/disabled separately for each excitation source.
Low Pass, High Pass, Band Pass, and Band Reject modes

Audio Input and Feedback
Run real-time audio through the string, including feedback through effects.
Modeled feedback includes modulate-able instrument-to-amp distance and orientation.

Filters
Dual multi-mode filters per voice; Single, Serial, Parallel (with split stereo output), and 24dB (4-pole) configurations. Low Pass, High Pass, Band Pass, and Band Reject modes
Multi Filter Mode (Filter A only).
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects

Modulation
5 Envelopes, 4 per-voice LFOs, 2 Key Track generators, String Tracking generators, 4 AMS Mixers.

MOD-7 Program

Waveshaping VPM Synthesizer
Combines Variable Phase Modulation (VPM), Waveshaping ring modulation, PCM sample playback, and subtractive synthesis; Able to convert-load SYX files.

Oscillators
6 VPM/Waveshaper/Ring Modulation Oscillators:
Phase and modulatable pitch per oscillator.
101 Waveshaper tables plus modulatable Drive and Offset.
Use as oscillators, or as Waveshapers or Ring Modulators for other signals.
PCM Oscillator:
Korg’s ultra-low-aliasing technology, as introduced in the HD-1.
4 velocity zones per oscillator.
Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode. Supports Virtual Memory.

Audio input
Run real-time audio through the VPM Oscillators and filters.

Filters
Dual multi-mode filters per voice. (Low Pass, High Pass, Band Pass, and Band Reject modes)
Two types of filter looping (Parallel and 24 dB “4-Pole”)
Multi Filter mode (Filter A only):
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects

Patch Panel
Supports both preset algorithm (78 types) selection and free patching.
Three 2-in, 1-out mixers for scaling and merging audio, fully modulatable, with phase inversion.
Main 6-input stereo mixer, with modulatable pan and volume, plus phase inversion

Modulation
10 Envelopes, 4 per-voice LFOs, 9 Key Tracking generators, Per-voice Step Sequencer, 4 standard AMS Mixers plus 4 simple AMS Mixers.

MS-20EX Program

Oscillators
Ultra-low-aliasing oscillators; VCO1, VCO2, Ring Mod, Pink and White Noise Generator

Audio Input
Run real-time audio through the synthesis engine and ESP (External Signal Processor)

Filters
12dB/octave High Pass and Low Pass self-resonant filters
ESP section:
24dB/octave Low Cut and High Cut filters, available per voice.

Patch Panel
Patchable audio and modulation, at audio rates

PolysixEX Program

Oscillators
VCO:
Saw, Pulse, PWM
Sub Oscillator:
Off, 1 octave below, 2 octaves below

Filter
24dB (4-Pole) Octave Low Pass self-resonant filter

Effects
Integrated Polysix Chorus, Phaser, and Ensemble

Arpeggiator
Integrated MIDI-synced arpeggiator, with adjustable Range, Mode, and Latch

Modulation
Polysix: Original ADSR EG and MG (with MIDI sync).
KRONOS: 2 additional multi-stage Envelopes, 2 additional per-voice LFOs, and 4 AMS Mixers.

Combination

Number of Timbres, Master Keyboard Functionality
16 Maximum
Keyboard and velocity splits, layers, and crossfades of up to 16 Programs and/or external MIDI Devices
The tone adjust parameter function lets you modify program settings, and the master keyboard function lets you control external MIDI devices

Advanced Vector Synthesis
Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.

Drumkit

System
Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade functions)

Number of Programs/Combinations/Drum kits
User Memory Programs
2,560 (2,176 [1,152 HD-1+1,024 EXi] come preloaded)
User Memory Combinations
1,792 (768 come preloaded)
User Memory Drum Kits
264 (80 come preloaded)
256 GM Level2 preset programs + 9 GM Level 2 drum preset programs

Set List

Number of Set Lists/Slots
128 set lists, 128 slots per set list
Each set list provides a 9-band graphic EQ, and a Tone Adjust function that allows program settings to be adjusted.
Transpose setting.
Hold Time setting of Smooth Sound Transition (SST) supported for each slot.

Sampling

System
Open Sampling System (resampling, In-Track sampling)

Bit Depth/Sampling Frequency
RAM: 16-bit/48 kHz stereo/mono sampling
DISK: 16 or 24-bit/48 kHz

Sampling Time
RAM: Depends on the amount of available PCM RAM
DISK: Maximum 80 minutes stereo (879MB: 16bit)

Sample Locations
16,000 samples/4,000 multisamples (128 indexes per multisample)

Ripping
Direct sampling (ripping) from audio CD (CD-DA)

Formats
Korg format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats

Editing
Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.

Effects

Insert Effects
12
Stereo in / stereo out

Master Effects
2
Stereo in / stereo out

Total Effects
2
Stereo in / stereo out

Timbre EQ
One 3-band EQ for each timbre/track

Effect Types
197

Modulation
Dynamic Modulation and Common LFO

Effects Control Busses
Stereo side-chaining for compressors, gates, vocoders, etc.

Effect Presets
Total 783 preset, Maximum 32 per 1 effect (Preset User)

KARMA

KARMA Modules
One module in Program mode, four modules in Combination and Sequencer modes

Generated Effects (GE)
2,048 presets, 1,536 Users (96 come Preload)

Controllers
On/Off, Latch, Chord, Assign, Module, Control, KARMA Realtime Control Sliders [1] – [8], KARMA Scenes [1] – [8], KARMA Switches [1] – [8], KARMA Wave-Sequencing, GE Sub Category, Freeze Randomize, Time Signature Control, Tempo Synchronize, Auto RTC (Real Time Control) setup

Drum Track Patterns
718 preset (common with the preset patterns of the MIDI sequencer)
1,000 user patterns
Patterns created in Sequencer mode can be converted to drum track user patterns.
Trigger Mode/Sync/Zone settings can be specified.

Sequencer/HDR

Tracks
16-track MIDI sequencer + 16-track hard disk recorder + 1 master track.

Number of Songs
200 songs

Resolution
1/480

Tempo
40.00 – 300.00 (1/100 BPM resolution)

Maximum Memory
400,000 MIDI events or 300,000 audio events

MIDI Tracks
16 tracks plus the master track
718 preset/100 user patterns (per song)
18 preset/16 user template songs

Audio Tracks
16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit.

Other Functions
RPPR (Realtime Pattern Play and Record) (1 Pattern set per song), Auto Song Setup function

General

Disk Mode
Load, save, utility, audio CD burning, audio CD playback, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.

Controllers
Vector joystick, joystick, ribbon controller, switches 1 & 2

Control Surface
Control Assign Switches:
Assigns the Control Surface to Timber/Track, Audio, External, Realtime Knobs/KARMA,

Tone Adjust/EQ
Mixer Knobs Switch:
Assigns the Mixer Knobs to either Channel Strip or Individual Pan, Reset Control Switch, Solo Switch, Knobs 1-8, Switches 1-8(Upper Row), Switches 1-8 (Lower Row), Sliders 1-8, Master Slider

KARMA Control
On/Off, Latch, Module Control

DRUM TRACK:
On/Off

Display

TouchView graphical user interface
8 inch color TFT, SVGA (800x600 dots), adjustable brightness

Výstupy

Analog
(MAIN) L/MONO, R:
1/4” TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO Only),
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)
MAIN VOLUME knob controls only AUDIO OUTPUT (MAIN) L/MONO and R

Individual 1-4:
1/4” TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono,
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)

Sluchátka:
1/4” stereo phone jack, Output impedance: 33 Ω, Maximum Level: 60+60 mW (when load impedance is 33 Ω),
MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))

Digital
S/P DIF:
Optical, 24-bit, IEC60958, EIAJCP-1201, Sample Rate: 48 kHz, (the same signals as L/MONO, R)
Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R
USB-B:
24-bit, Sample Rate: 48 kHz, 2 channels
(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)

Vystupy

Analog
Audio Inputs 1 and 2:
1/4” TRS Balanced
MIC/LINE input level switches, LEVEL knobs
Input Impedance: 10 kΩ
Nominal Level: LINE
+4 dBu (LEVEL knob = min), –36 dBu (LEVEL knob = max)
Nominal Level: MIC
–22 dBu (LEVEL knob = min), –62 dBu (LEVEL knob = max)
Maximum Level: LINE
+16 dBu (LEVEL knob = min), –24 dBu (LEVEL knob = max)
Maximum Level: MIC
-10 dBu (LEVEL knob = min), –50 dBu (LEVEL knob = max)
Source Impedance: 600 Ω
Signal to noise ratio: 95 dB (typical)
Dynamic range: 95 dB (typical)
Crosstalk: 95 dB, at 1 kHz (typical)

Digital
S/P DIF:
Optical, 24-bit, IEC60958, EIAJCP-1201, Sample Rate: 48 kHz
USB-B:
24-bit, Sample Rate: 48 kHz, 2 channels

Ovládací vstupy

Damper pedál (podpora polovičního šlapání), přiřaditelný spínač, přiřaditelný pedál

MIDI

In, Out, Thru

USB

USB*5
USB A (TYPE A) x 2, Pro připojení externích USB zařízení (klávesnice QWERTY, MIDI kontrolery, ethernetové adaptéry a paměťová zařízení)
USB B (TYPE B) x 1, MIDI/audio interface
MIDI: 1 (16 channel) input / 1 (16 channel) output
Audio: 2 vstupy / 2 výstupy
*5 USB high-speed ports (supports 480Mbps)

Diskové jednotky

120 GB SSD (2.5”)

Spotřeba energie

40W

Rozměry (Š x H x V)

61 key: 1,064 x 363 x 134 mm
73 key: 1,245 x 370 x 148 mm
88 key: 1,457 x 370 x 148 mm

Hmotnost

61 key: 14.2 kg
73 key: 20.4 kg
88 key: 23.4 kg

Dodávané příslušenství

Napájecí kabel
